Emporia EV Charging Station

Overview

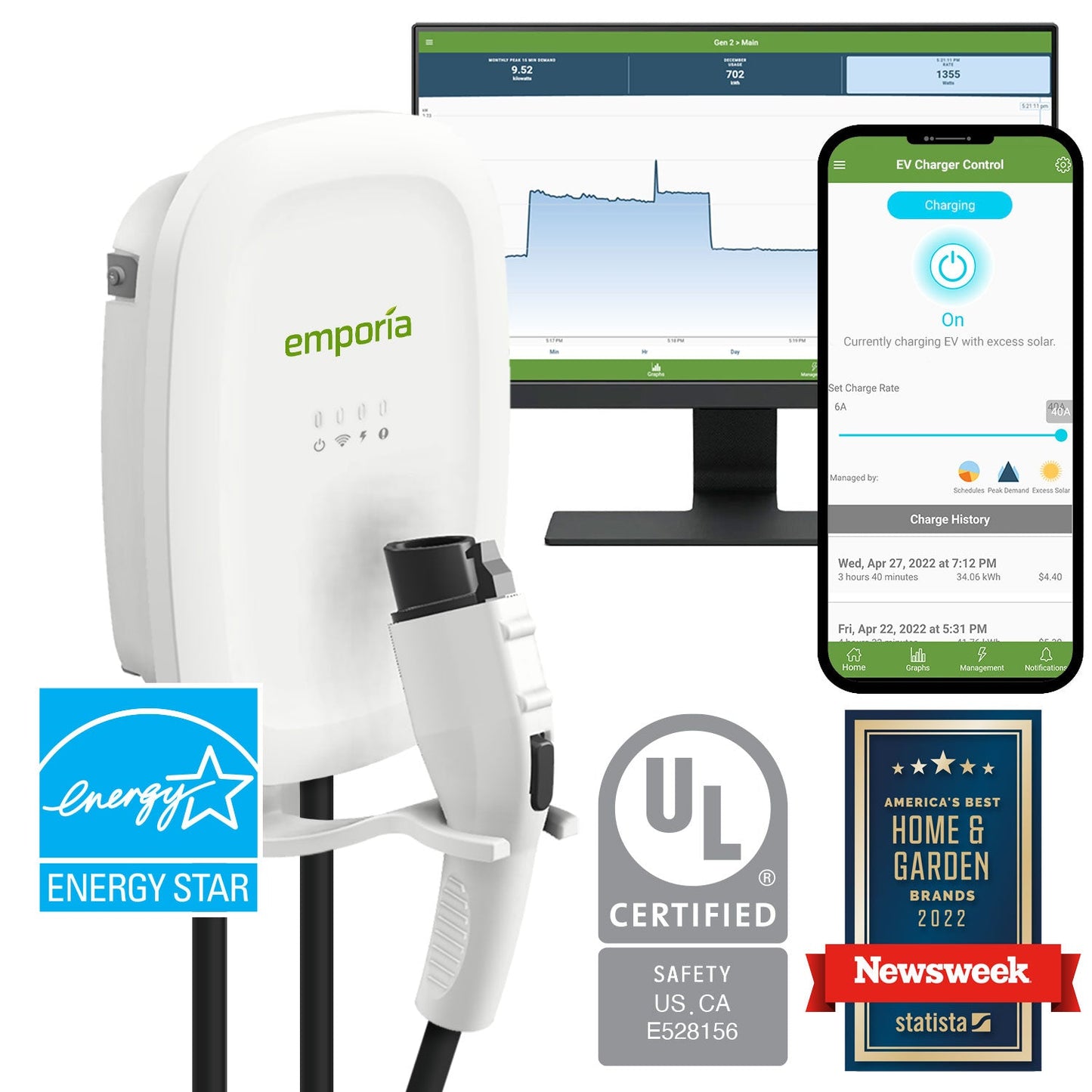

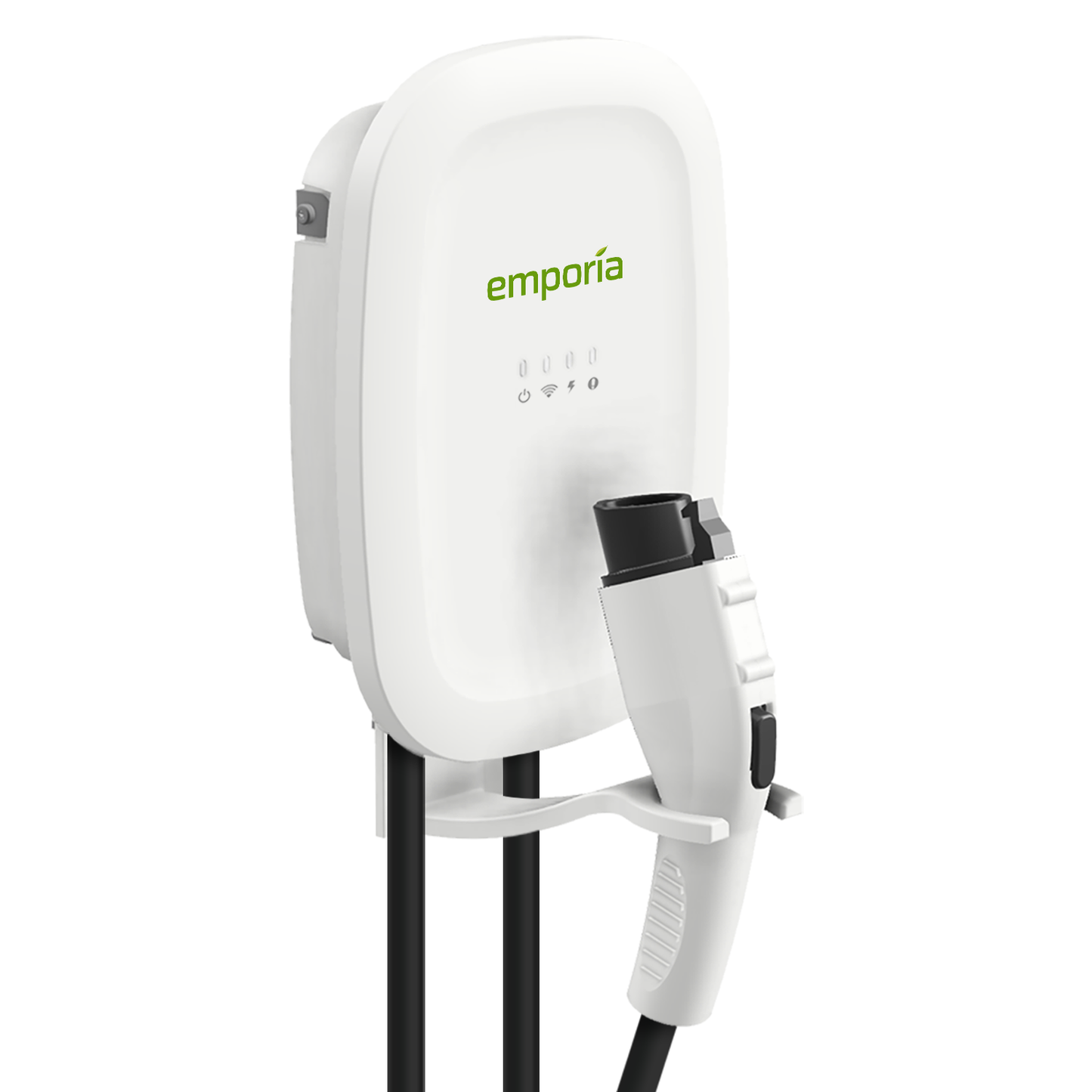

Introducing the Emporia EV Charger, a cutting-edge Level 2 charging solution for your electric vehicle. Engineered for maximum efficiency, this charger boasts a powerful charging capacity of up to 40 amps with a 22" NEMA 14-50P plug and can achieve up to 48 amps when hardwired. It features a lengthy 24’ cable complete with an SAE J1772 connector, ensuring compatibility with all EV models. Encased in a sturdy NEMA Type 4 enclosure, it is perfectly suited for outdoor use.

Key Features and Benefits

• Certifications: UL and ENERGY STAR certified, this Level 2 charger necessitates a WiFi connection to regulate charging rates.
• Safety Compliance: Adheres to NEC 625, SAE J1772, UL 817, UL 991, UL 2231, UL 2251, and UL 2594 safety standards. Includes a three-year warranty.
• Installation Options: Offers flexibility with both hardwired and NEMA Type 14-50P plug installations. Professional electrician recommended for installation.
• Universal EV Compatibility: Comes with an SAE J1772 connector, supporting all electric vehicles.
• Monitoring: Utilize a 2.4 GHz WiFi connection to access real-time data on energy consumption and manage charging schedules through the Emporia app.
• Eligibility for Incentives: May be eligible for various Federal and local rebates and incentives.

Dimensions

Charging Station: 12.6" x 9" x 3.4" (320mm x 230mm x 86mm)

Charging Head: 5.3" x 2.2" (135mm x 56mm)
